Overview

This post takes a look at vision-language models (VLMs). Common VLM tasks are image-text retrieval, visual question answering (VQA), visual reasoning, captioning, visual entailment. weakly-supervised grounding.

This post looks for models understanding images and interacting with languages and focuses on models fusing vision language modalities with cross-attention. Models with fusing mechanisms are commonly:

  • Dual-encoder: CLIP;
  • Encoder–decoder: models that explicitly encode vision then decode text, SimVLM;
  • Hybrid dual-encoder and encoder-decoder: ALBEF, CoCa;
  • Unified transformer: BLIP;
  • Multi-modal LLM with cross-attention adapters: Flamingo.

Models

ALBEF (Li et al., 2021)

This paper summarizes the related work in two categories regarding multi-modal modelling.

  1. joint vision-language encoders with cross-attention for complex reasoning;
  2. separate uni-modal encoders, like CLIP, for simple tasks like image-text retrieval.

ALBEF proposes to combine both categories of models with Image-Text Contrastive learning (ITC), Masked Language Modelling (MLM) and Image-Text Matching (ITM) objectives. Moreover, it proposes to use two important approximations with queuing memory bank (He et al., 2020) and soft labels. As a result, it can use 8xA100 GPUs for 30 epochs of batch size 512.

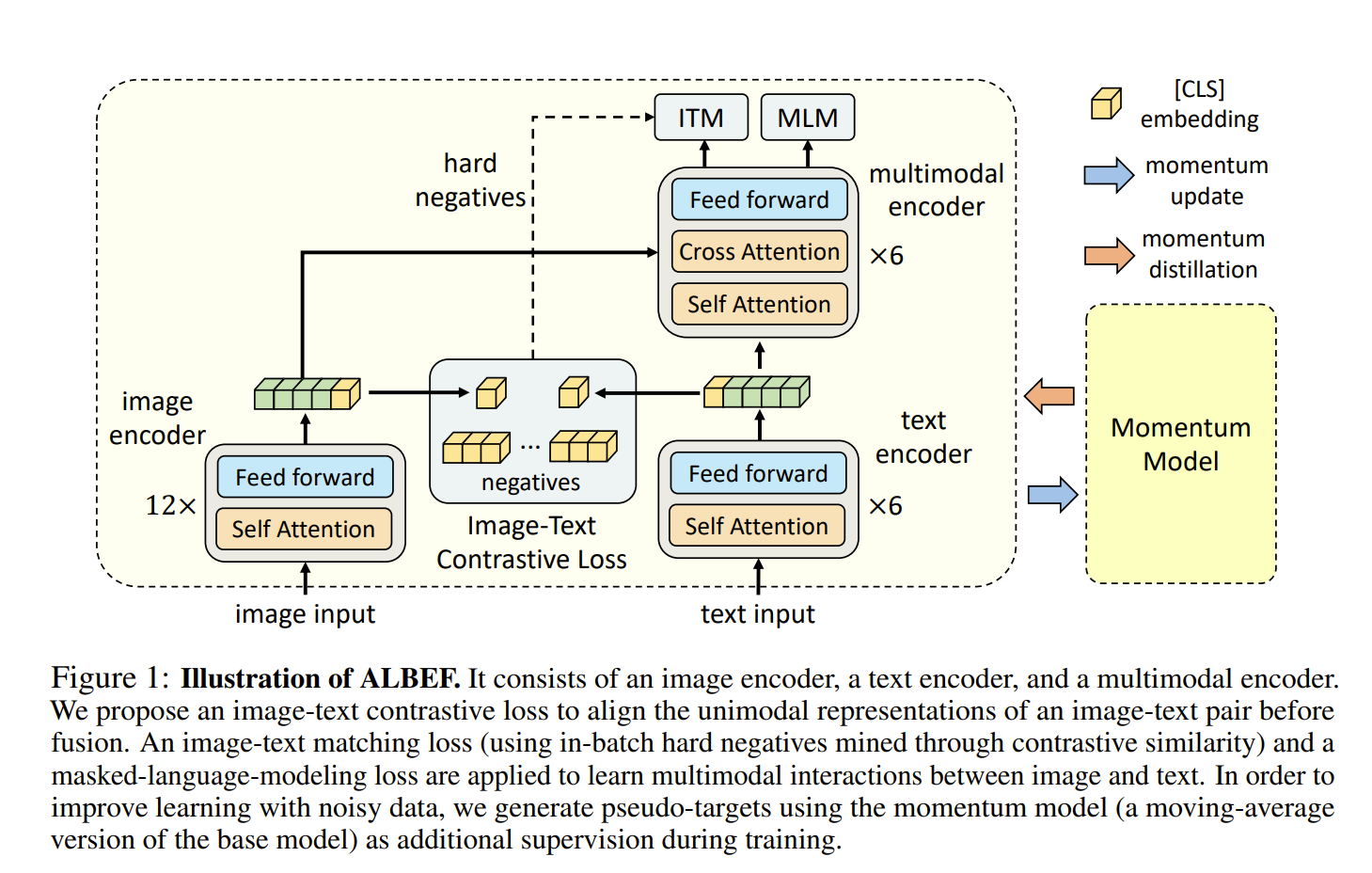

As shown in Fig 1, the objectives are applied to both individual encoders before using cross-attention and to the final representation after using cross-attention. It worths to note that contrastive learning requires large number of negative samples, like a huge batch in CLIP. Using memory bank saves computes by re-using the outputs from previous calls of teacher models as the approximation of the outputs of the current student model. Moreover, to handle the noisy labelling of web data, a mix of soft labels from teacher models and labels by annotators are used for training. Fig ALBEF source (Li et al., 2021)

Details: Memory bank, knowledge distillation

CoCa (Yu et al., 2022)

The work has a different opinion from CLIP about captioning for representation learning. It argues that captioning can help improve performance on complicated reasoning tasks like VQA compared with image text retrieval. The key idea is to design a Transformer-based architecture for both contrastive loss (like CLIP) and captioning loss. The first part of the text decoder doesn’t use cross-attention so it is a uni-modal text encoder for the contrastive loss with image encoder. The second part of the text decoder applies cross-attention and captioning loss. One benefits of the architecture is that one forward pass can be used for computing both loss.

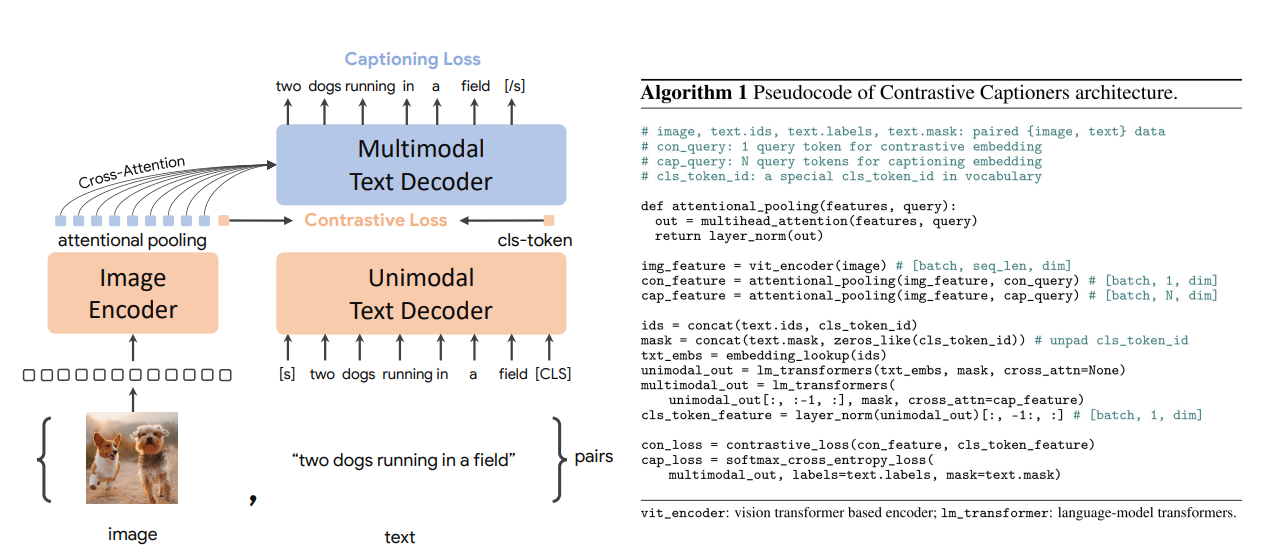

Fig Coca source (Yu et al., 2022)

One trick in CoCa is to use attention pooler to extract image features from image encoder. Depending on tasks, the pooler can be modified for regional information or global information.

BLIP (Li et al., 2022)

The first BLIP model is similar as CoCa which modifies the Transformer architecture for applying multiple losses. Different from CoCa, BLIP requires three runs of the text encoder-decoder. There are three tasks, image-text contrastive, image-text matching, and image-grounded text generation. Different tasks use different modules of the model.

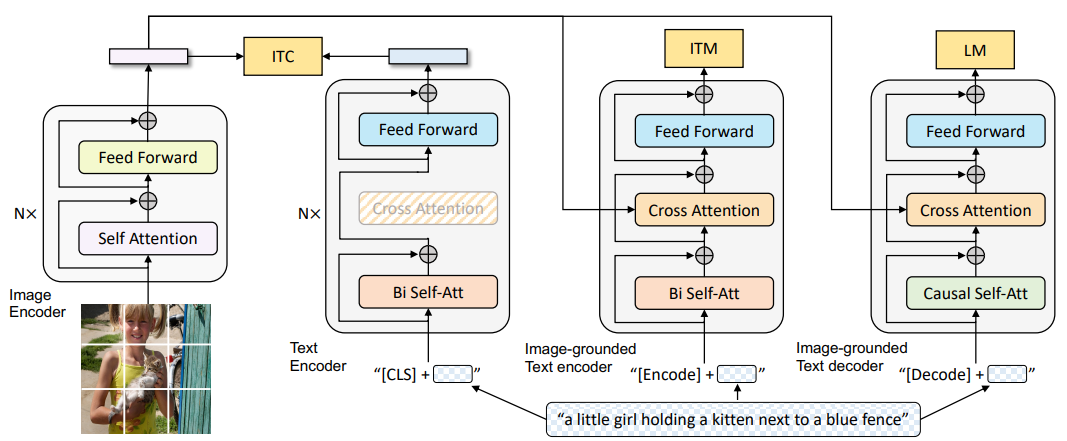

Fig. BLIP-1 Fig. BLIP-1: three losses for different modules of the same Transformer-based architecture. Three forward runs for text encoder-decoder, and one run for image encoder. One backward run is applied for updating parameters.

Moreover, BLIP introduces an interesting learning strategy with the model, CapFilt. It first learns a model based on the raw dataset. And they finetune the pre-trained model for different tasks, captioning with the captioning loss and filtering with the ITC and ITM losses on dataset CoCo. And then apply the finetuned models to get a better dataset than the raw dataset.

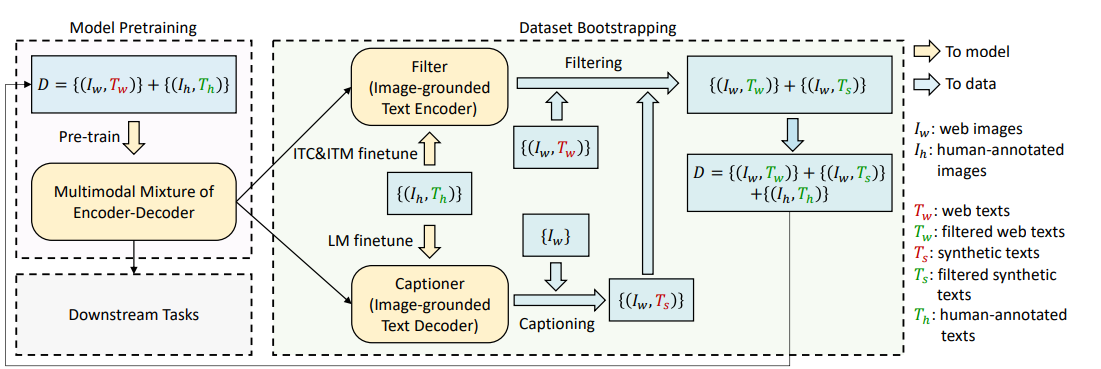

Fig. BLIP-1 Fig. BLIP-CapFilt: One loop is used for BLIP. It first learns a pre-trained model on the raw dataset, and then finetunes two models on CoCo for captioning and filtering. Then the finetuned models are used for getting a better dataset. Finally, the pre-trained model is updated with the new dataset or a new model is trained on the new dataset.

Flamingo (Alayrac et al., 2022)

Flamingo transform pre-trained visual and language models into visual conditioned text generation model. It has three key highlighted modules: perceiver io for unifying video and image data; gated cross-attention for conditioning text generation on visual features with ordered masks and causal masks; enormous collected training data. It claims a few contributions:

  • sustainability: leverage pre-trained vision-only models and language only models (preserves the knowledge accumulated during pre-training: gated cross-attention);
  • flexibility: arbitrarily inter-leaved visual and textual data(rich interleaved web data + masked cross-attention computing with representing this type data properly)
  • compatability: ingests images or videos as inputs (perceiver resampler)

A visual conditioned text generation model based on frozen encoders. Given a frozen-weight pre-trained visual encoder (NFNet) and a language model (Chinchillas), a perceiver resampler and cross attention layers are introduced by Flamingo as show in Fig. flamingo-1. Perceiver resampler unifies visual inputs, images and video data. It first takes the flattened visual features and outputs fixed length processed features. Moreover, between every two blocks, a gated cross-attention layer is introduced. The gating mechanism makes sure not change the language model outputs initially. Furthermore, to cooperate interleaved images and texts, the images are masked differently for computing cross-attention scores following a pre-defined rule.

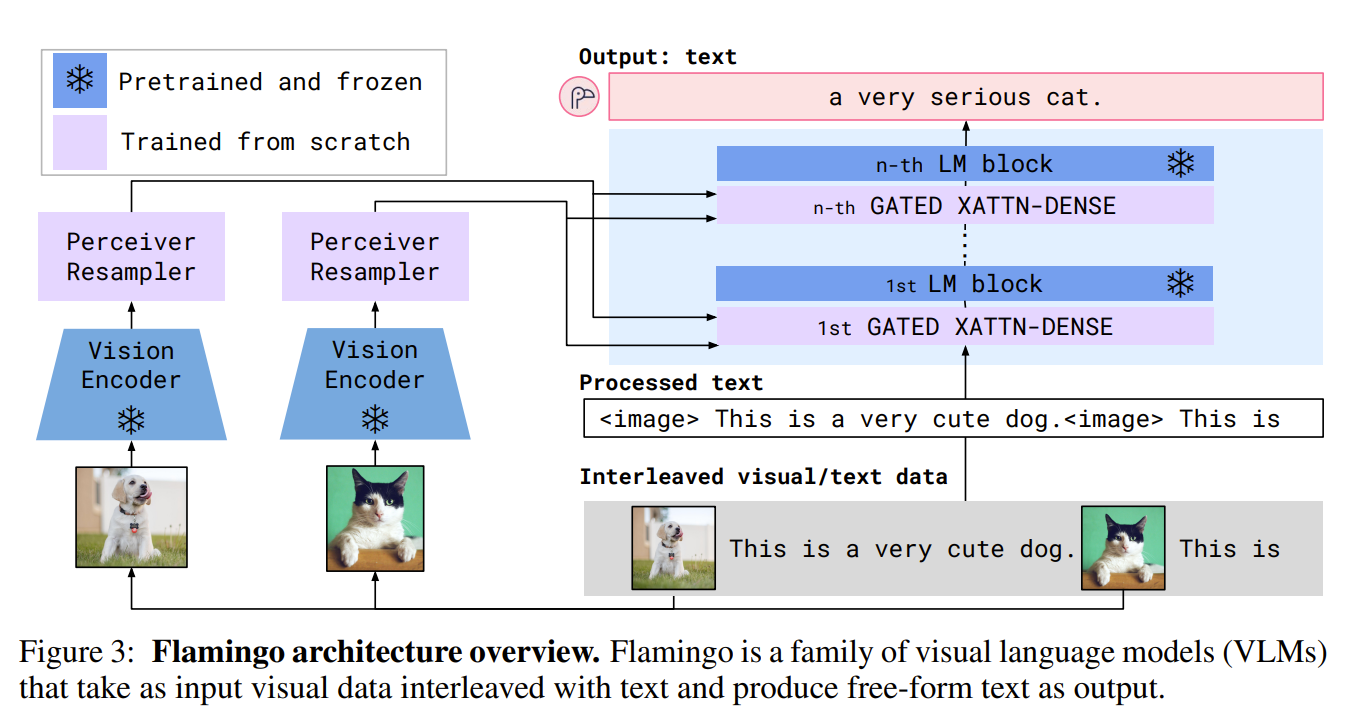

Fig. flamingo-1 Fig. flamingo-1. Moduels of Flamingo model. Visual encoder, Perceiver resampler, gated cross-attention layers.

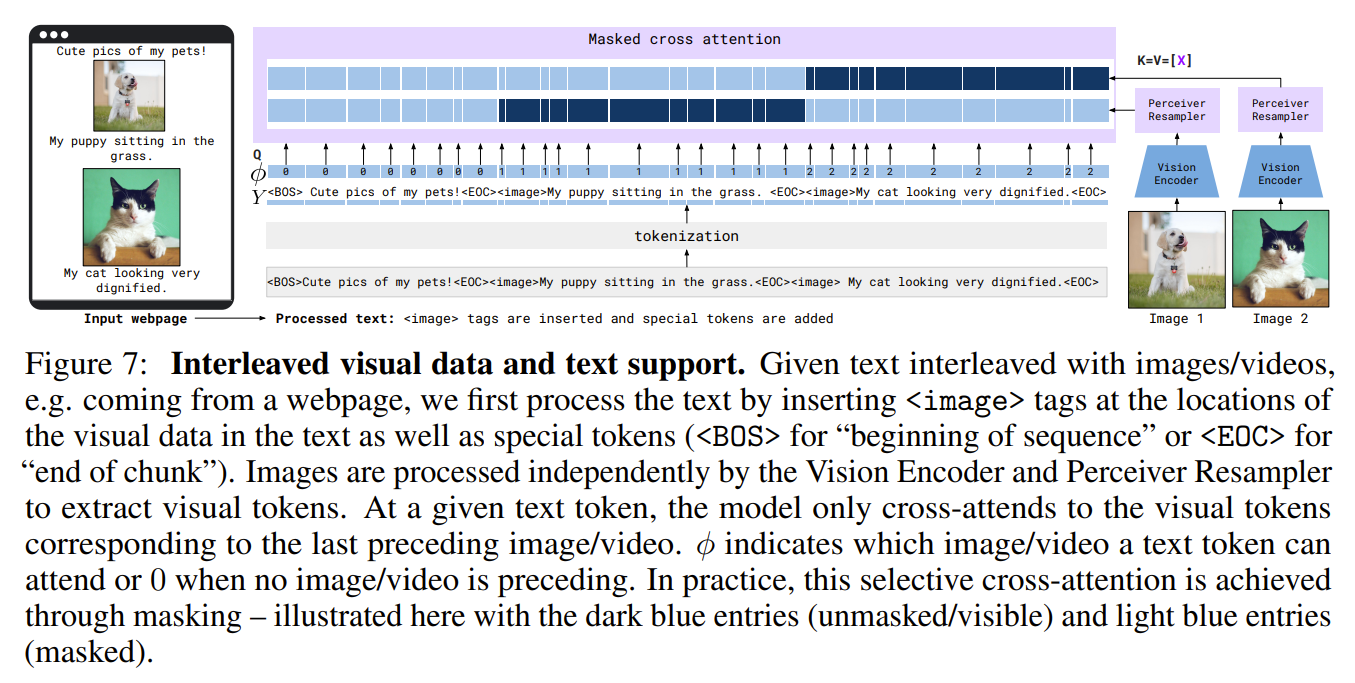

Important details about modules: cross-attention layers. To capture the position of images relative to texts, $\phi$ coding numbers are assigned for each token for their visible images when computing cross-attention scores.

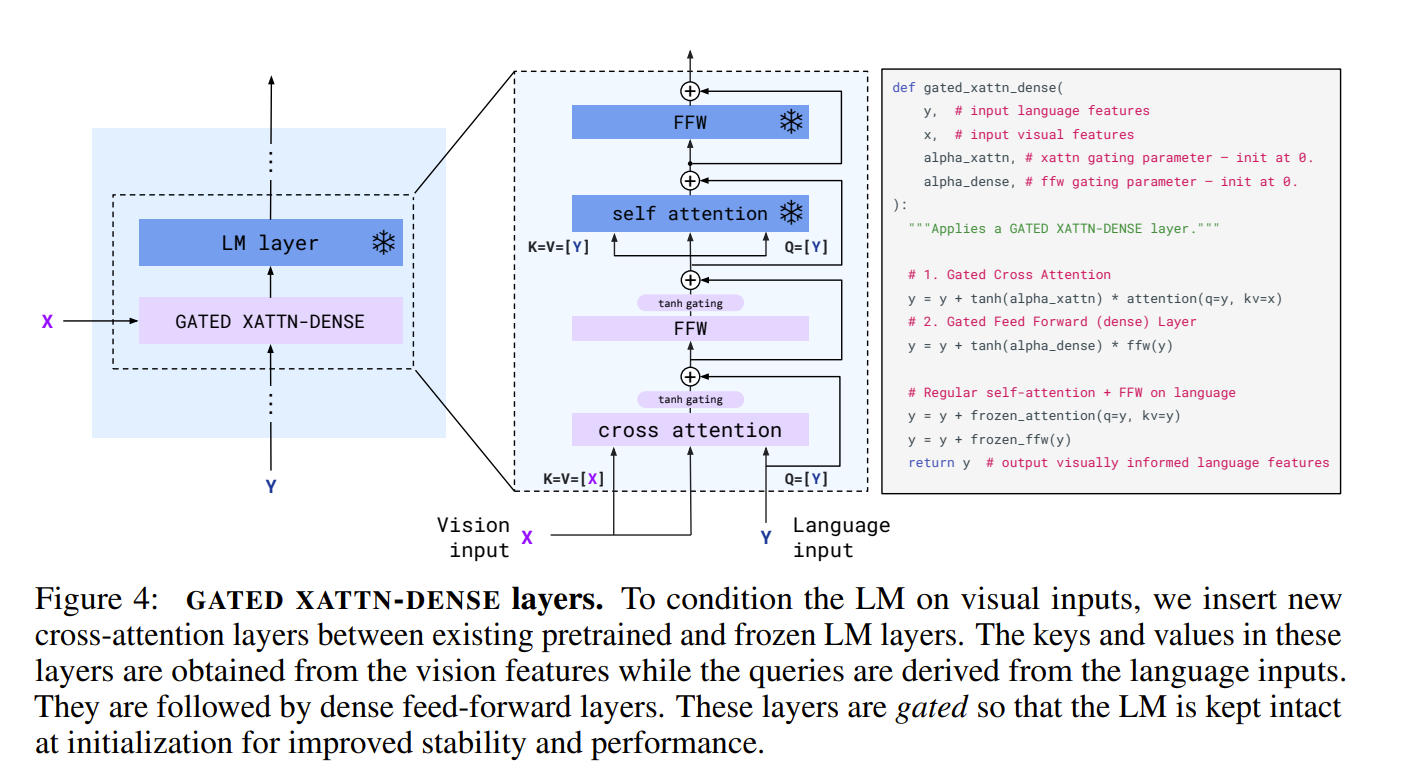

Fig. flamingo-xattention Fig. flamingo-masks

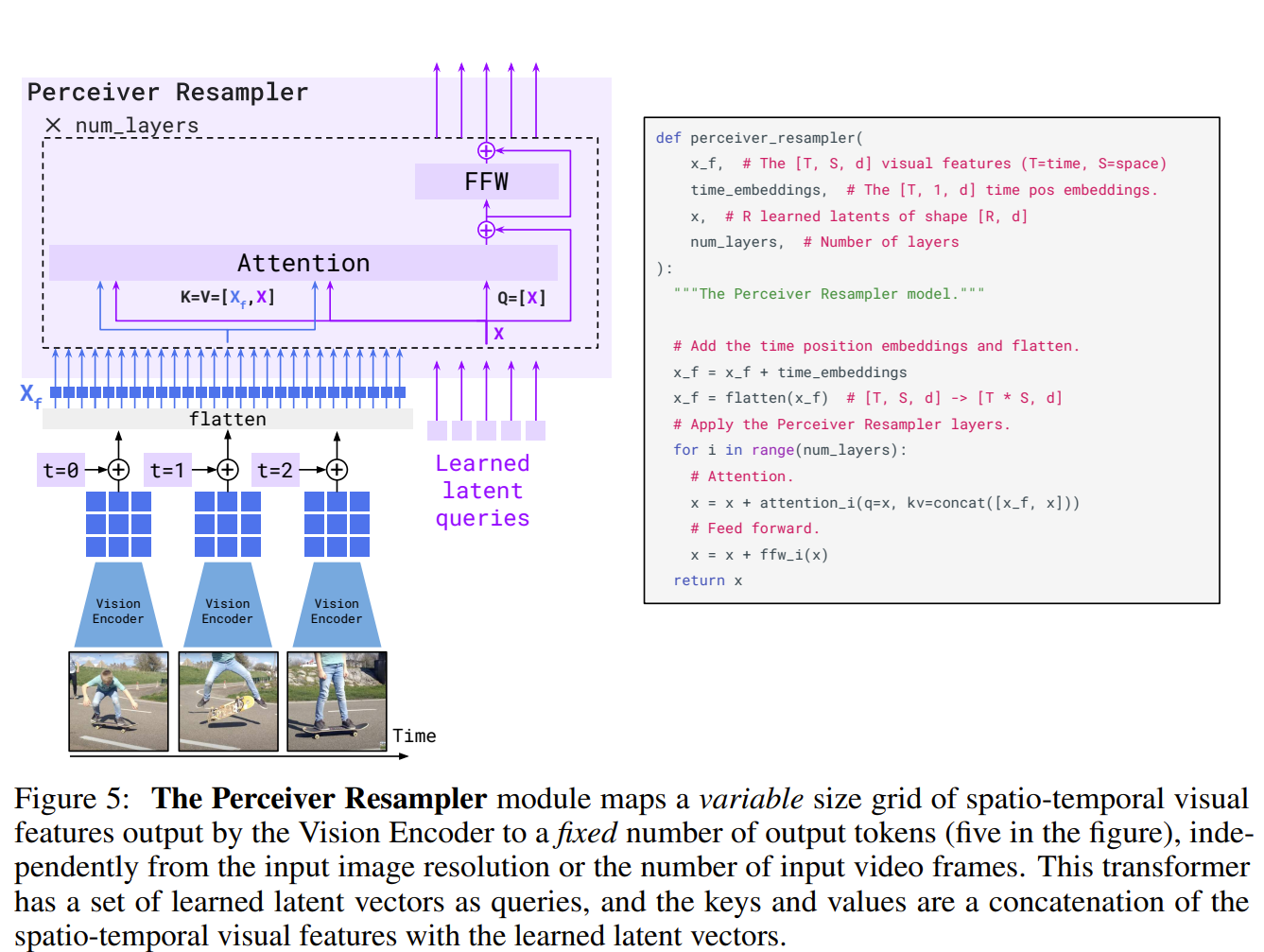

Perceiver Resampler. Fig. flamingo-perceiver The learned latent queries extract information from input features which start from random tensors to representations as conditional signal to language models.

Paradigms: zero-shot, few-shot, and finetuning paradigms. A famous zero-shot transfer model, CLIP, is good for closed-ended tasks, e.g., classification, but these models perform worse on open-ended tasks like VQA require more complex reasoning abilities. So further efforts on VLMs are in need. (Radford et al., 2021) Flamingo compares finetuning with few-shots learning when few data are available. It states that finetuning still requires computation resources and per-task hyperparameter tuning, which is less ideal compared with few-shot learning. But few-shot learning requires computations during inference time and may achieve the upper limit of performance. Compared with zero-shot, few-shot learning can regularize the output formats by showing examples.

Perception IO It is both an architecture significance but also the bottleneck on how much information can be effectively compressed by Perciever IO. (Jaegle et al., 2021)

512 TPUs for a sustainable work are too expensive A few more amazing facts:

  • it collects even larger datasets;
  • it retrains a few CLIP models

Why Flamingo still requires a big number of TPUs?

  • Forward pass still needs all parameters in TPUs;
  • The training loss is over all datasets.

BLIP-2 (Li et al., 2023)

A continual learning view of VLMs. A scenario of VLMs is that given a working LLM, we want to empower it with visual reasoning capabilities. One way is to train from scratch by considering image patch tokens and text tokens at the same level, which is expensive and requires changes of training processes. Another way is to extend the capability of LLMs and make them “continual learning” on visual tasks. Following the later idea, one continual learning methodology is architecture-based. We don’t want the limited capability of existing models lead to catastrophic forgetting; hence, augmenting existing LLMs is in need. Flamingo applied visual encoders with Perceiver resampler extracting relevant visual information and added gated cross-attention layers in-between LLMs. BLIP 2 claimed that this is an expensive way. BLIP 2 uses a similar representation learning trick with transformers as Perceiver resampler, that takes texts and images as input and provides representation including both information. Such representation is transformed and used as a prepended embedding of LLMs for generating answers.

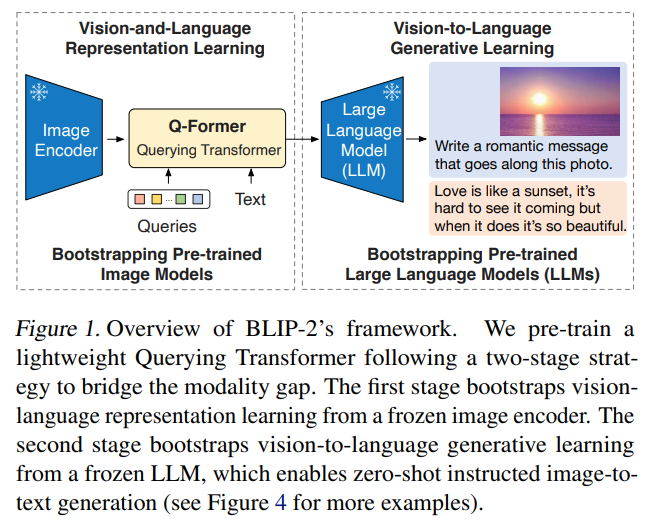

A conditional generation view of VLMs. Given an image encoder and a LLM, the image encoder provides features as conditional signals for the LLM such that the LLM can provide answers for the given query about the image. Flamingo filled in the gap by cross-attention layers and transformer-based visual representation learning. Moreover, different from previous dual-encoder, encoder-decoder methods in fusing VLMs, BLIP-2 proposes a stand-alone transformer for bridging the visual and language model gaps. The same as Flamingo, image encoders provide visual features and LLMs provide final answers. Fig. blip2 Fig.blip2. BLIP-2 uses Q-Former to fill in the gap between visual and language pre-trained models. This figure is not the same for using BLIP 2 which takes text input by the LLM not by Q-Former.

Sustainability. BLIP-2 motivated in the following way. Pre-training models have high computational cost. Especially for VLMs, reusing out-of-the-shelf pre-trained models while freezing parameters is a compelling way but challenging. Because language and image encoders are trained separately. Their embedding spaces are disconnected. Similar concepts in the language embedding space are not necessary similar in the visual space. Therefore, augmenting the embedding space and model capabilities is still an open question.

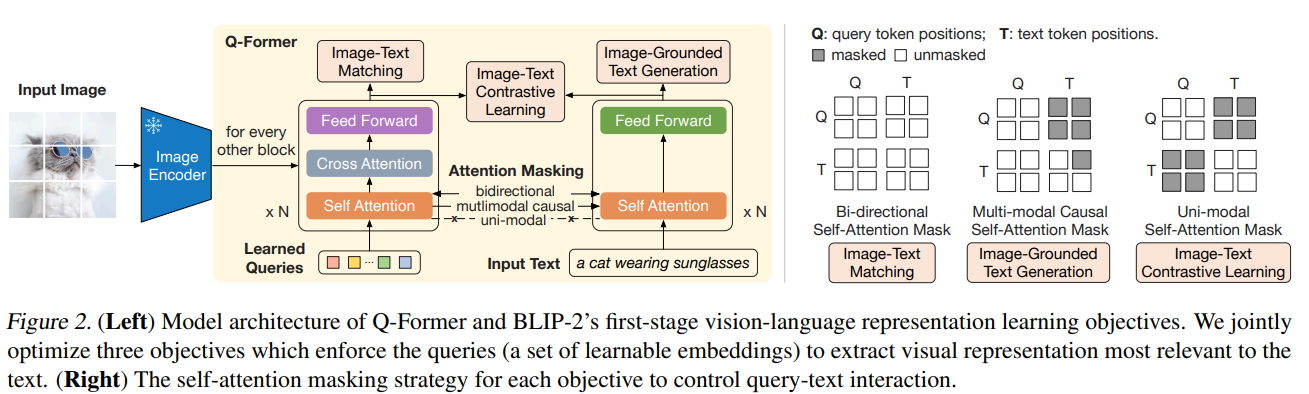

Q-Former. Fig. blip2_qformer Fig.blip2_qformer. The 1st stage of Q-Former based on a pre-trained BERT. Fig. blip2_qformer Fig.blip2_qformer. The 2nd stage of Q-Former.

The Q-Former takes learned queries and query texts as input and provides representation based on learned queries for LLMs. It is based on a pre-trained BERT and uses cross-attention layers to extract visual information from visual encoder features. Moreover, different masks are used for computing the objectives of training the stage-1 Q-Former.

Two-stage training. The two-stage manner turns a BERT into an alignment model to fill in the gap step by step. The first stage contains three objectives: image-text contrastive learning (similar as CLIP, given an image, find the winning text against the rest texts); image-text matching (whether it is a paired image-text or not); image-grounded text generation (captioning). The captioning task is not so BERT, but the purpose at this stage is not to get a perfect captioning model, instead to get a good enough visual information extractor. The text and the objectives are supporting to have a better representation from learned queries. Then the second stage takes the linear transformed representation as prepended embeddings of text embeddings and further finetune the Q-Former.

Following up competing models

Let’s have a series called the big worlds for the flagship models, like BLIP, QwenVL, InternVL, Kimi-VL, LlaVa, PaLI.
